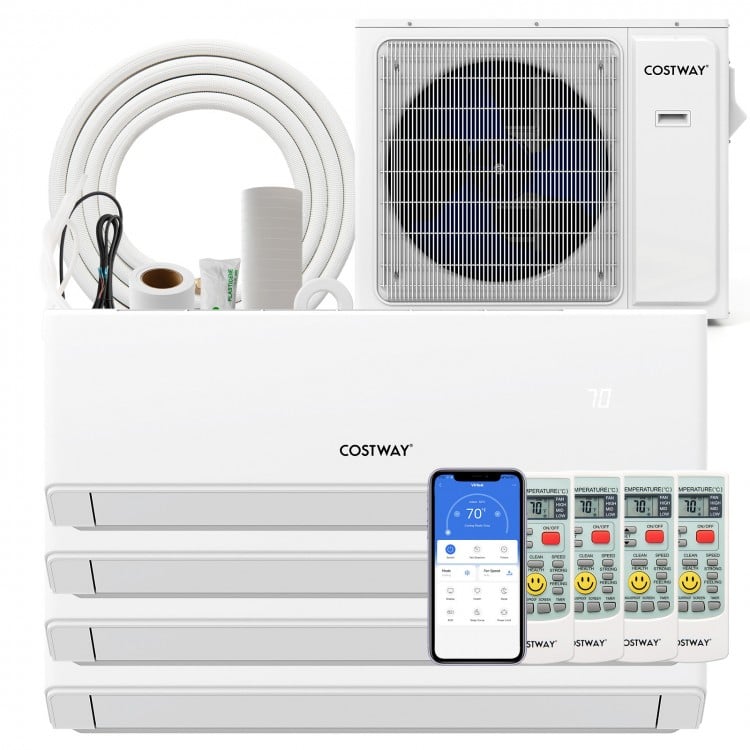

UltrEco Series 36000 BTU 4 Zone 23 SEER2 Mini Split Air Conditioner Wifi Enabled with Heat Pump
Worry-Free Delivery available with
Log in for 4289 PTS per Purchase.Log inFree Shipping on All Orders7-Year Warranty30-Day Return
Looking for AC Installation Services?What AC Fits Your Space?
Overview
Reviews
Q&A
Manuals
Overview
● 7 years Warranty for compressor and 5 years for parts to ease your worries
●Cool and heat multiple zones individually and efficiently

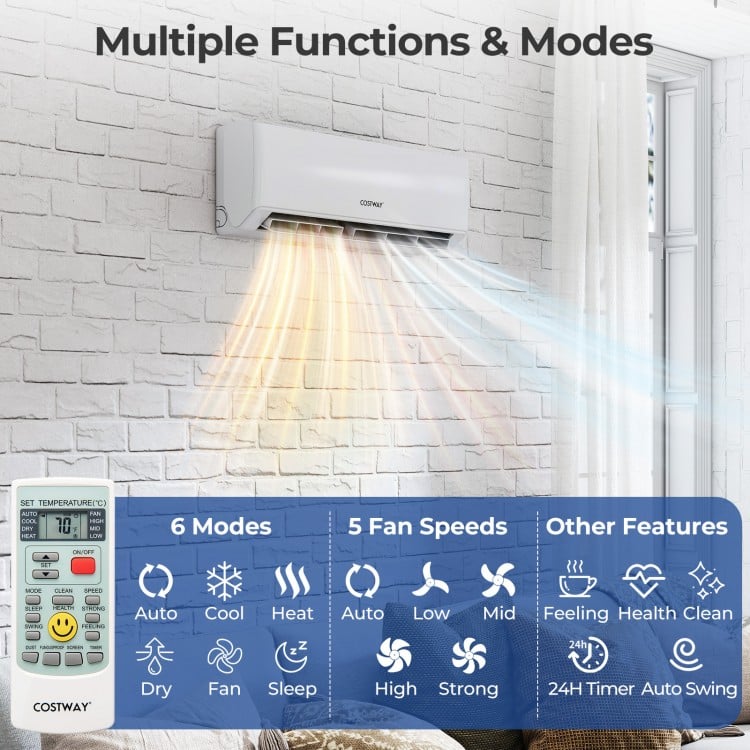

●6 modes and 5 fan speeds to customize your comfort

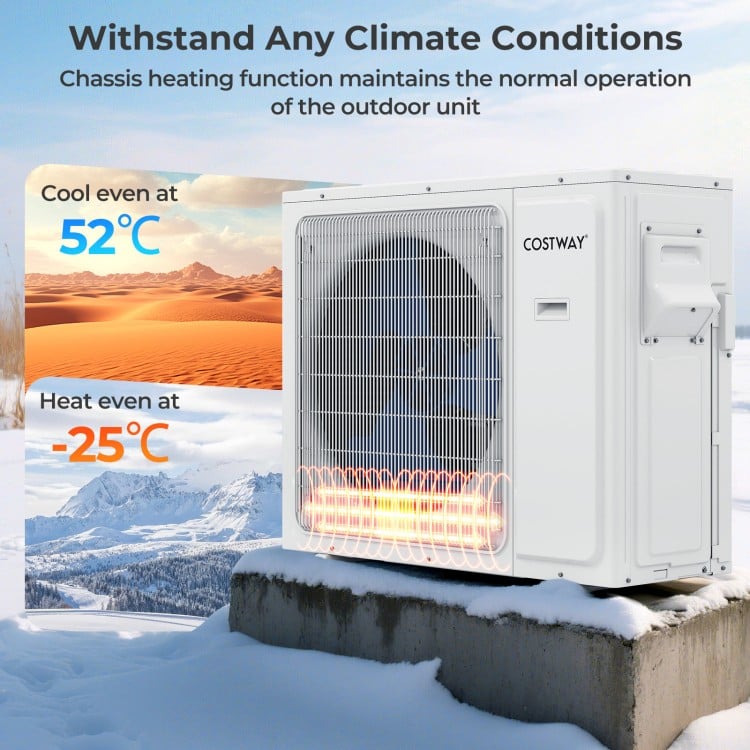

●Cool even at 52℃, heat even at -25℃
●Stay connected and in control with the Wifi-enabled feature
●Remote control with digital display for easy operation
●Advanced inverter technology enhances energy efficiency
●Low noise operation ensures a peaceful environment
●Chassis heating function prevents freezing on cold days
●24H timer provides programmable convenience
●Removable and washable filter for hassle-free maintenance
●R32 refrigerant has a lower environmental impact
●Complies with Energy Star, AHRI and ETL
Reviews
Frequent Mentions
- D
Outstanding performance, quiet, and energy efficient
03/16/2026I’ve had this ductless air conditioner for about six months now, and it’s the best investment for my 1500 sq.ft. home office/workshop. The heating performance in winter was phenomenal; it maintained a cozy temperature even during sub-zero days. Cooling is equally powerful and silent. The WiFi app is incredibly reliable for scheduling and remote adjustments. The installation kit was complete, and the included lineset was perfect for my setup. Highly recommend for anyone needing a reliable all-season climate solution.
![Customer Photos]()
Preview - M
30000 btu mini split 2 zone mini split
11/23/2025great product great price fast shipping and
- M
30000 3 zone mini split
11/21/2025Great product great price fast shipping
- R
Great deal
11/10/2025seems to work fine so far.
- J
3 head mini split
09/27/2025Easy to install great quality and blows super cold it is installed in a 2 bedroom 1 bath house that is 1400 square foot
Q&A
- Q:What is the COP at -25C?A:The COP for the unit at -25℃ is 4.00W.
Costway representative - Q:For a 36000 btu 4 zone item number 687195324 what size line set do I use for 50 foot length and does it require additional freonA:The recommended line set size for a 50-foot length is 1/4 inch for the liquid line and 3/8 inch for the gas line. If you extend the line set beyond the included length, you will need to add additional refrigerant (freon) to maintain proper cooling performance. It is advisable to have a professional technician perform this task to ensure it is done correctly and safely.

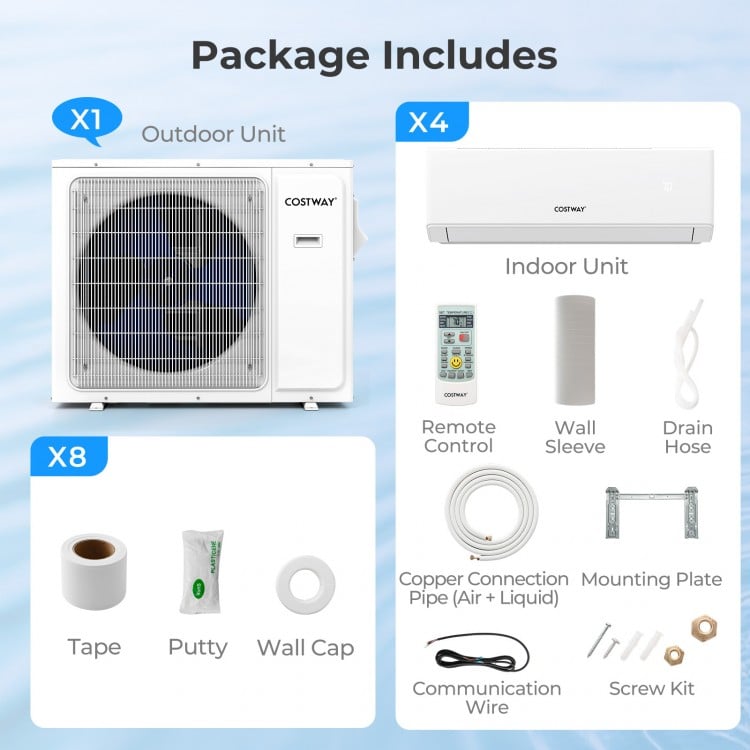

Costway representative - Q:What length line sets come with units?A:The unit comes with a copper line set that is 16 feet in length. This includes the necessary components for installation.
Costway representative - Q:For the outdoor disconnect is a 30amp box large enough for this unitA:A 30 amp box should be sufficient for this unit's outdoor disconnect needs.
Costway representative - Q:can I purchase without the line sets? I will need longer lines and the linesets supplied will be useless.
- Q:What size line set for the 24000btu air handler?A:The recommended line set size is a liquid line of 1/4 inch and a gas line of 3/8 inch. The length of the copper line is typically 16 feet.
Costway representative - Q:What is the minimum rated capacity or the lowest compressor modulation spec? Also, does costway sell additional line sets and control wires if I needed to purchase longer than 16ft?A:Approximately for cooling 6350 BTU/h, for heating 7000 BTU/h. Depending on the specific situation. You can order longer power cables by visiting the Costway official website under Home > Appliances > Climate Control Appliances > Air Conditioners > Mini Split AC Parts & Accessories. There, you will find high-quality cables featuring advanced triple-layer insulation for safety and compatibility with various applications. Alternatively, you can search for "Mini Split Line Set" on the Costway website to find the options available for longer lines.
Costway representative - Q:I am looking at the 4 head 7 x 7 x 9 x 18 mini split system. What are the line sizes and the lengths that come with the system? Also what is the maximum line length with the precharged coolant?A:The line set is 16 ft in length, with a 1/4" liquid line and 3/8" air line. If the liquid pipe length is less than 24.6 ft, no additional filling is required.
Costway representative - Q:Are the lengths of copper tubing the same for all indoor units or do they vary, and what lengths are they? ThanksA:The lengths of the copper tubing for the unit are typically the same for all indoor units, with each copper line being approximately 16 feet long.
Costway representative - Q:Wire size needed.A:For the UltrEco-36K-51 unit, it is recommended to use a wire size of at least 10 AWG (American Wire Gauge) for proper electrical connection. This is essential for ensuring safe operation and optimal performance of the unit.
